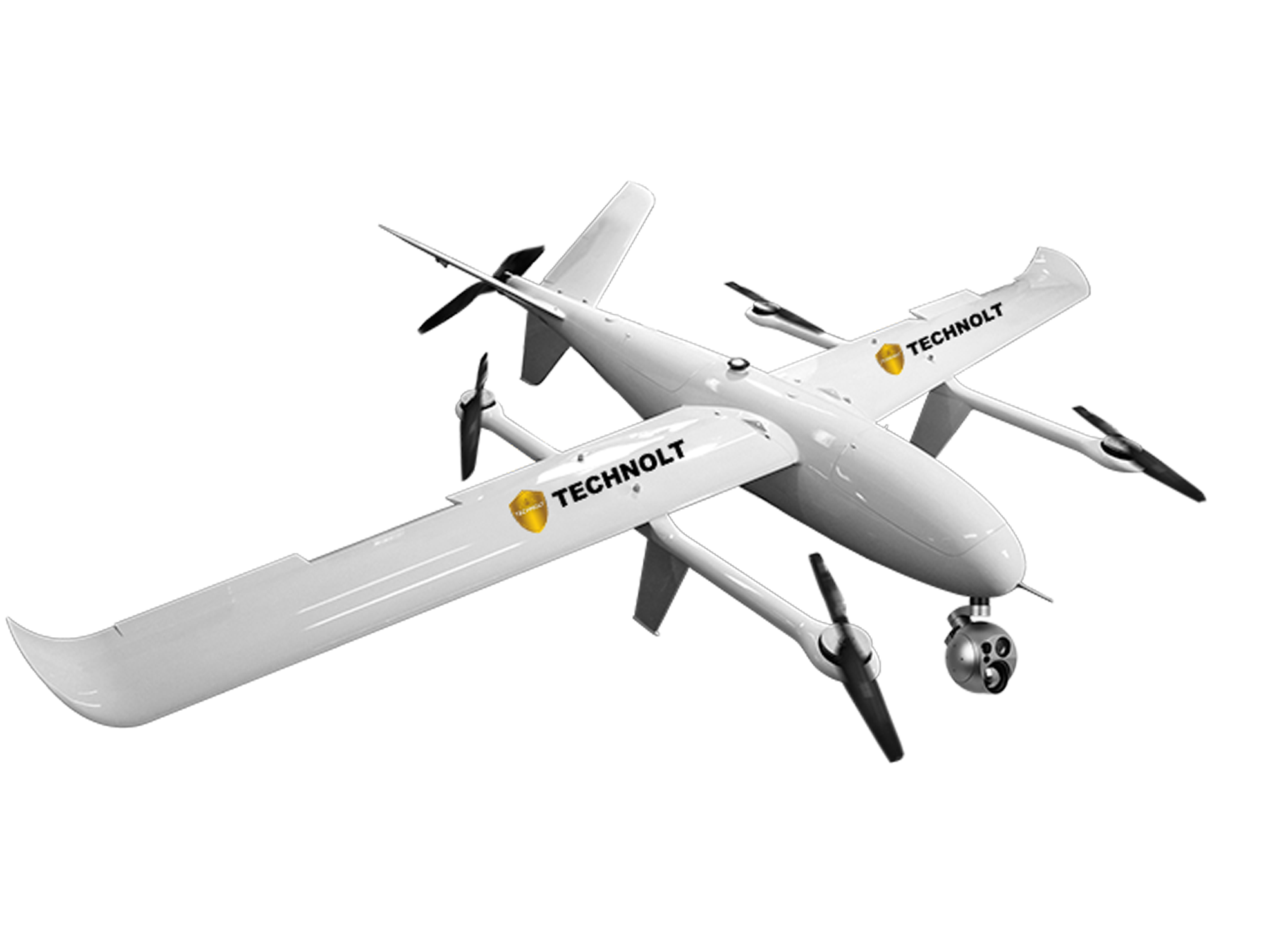

The GÖKTUĞ-III (VTOL V3500-E) is an advanced vertical take-off and landing (VTOL) unmanned aerial vehicle (UAV) designed for high-altitude reconnaissance, surveillance, and tactical operations. Its robust design allows seamless operation in challenging terrains, making it a vital asset for modern defense and security missions. The UAV features state-of-the-art VTOL technology, enabling it to launch and land vertically without the need for a runway. Its aerodynamic airframe ensures stability and efficiency, even in adverse weather conditions. Powered by a next-generation propulsion system, the GÖKTUĞ-III delivers extended endurance and range, suitable for prolonged missions.
Equipped with cutting-edge EO/IR cameras and synthetic aperture radar, it provides real-time intelligence and situational awareness. Its low radar and thermal signature enhances stealth, making it capable of operating in heavily contested airspaces. AI-driven flight controls and autonomous targeting systems ensure precision and efficiency in critical missions.
The GÖKTUĞ-III supports modular payload configurations, allowing for diverse mission roles, from reconnaissance to electronic warfare. With secure communication systems and multi-environment adaptability, it represents a significant leap in UAV technology, redefining modern aerial operations.
| # | Takeoff | VTOL |
|---|---|---|
| 1 | Wing Span | 3.5 m |
| 2 | Body Lenght | 1.9 m |
| 3 | Maximum Take-off Weight | 30 Kg |
| 4 | Max. Payload | 5 Kg (With Camera) |
| 5 | Propulsion System (V) | 4xBrushless DC Motor |
| 6 | Propulsion System (H) | 1 x Brushless DC Motor |
| 7 | Material | Composite |
| 8 | Range / Data Link | 70-100 Km |
| 9 | Flight Time | 4 Hours |
| 10 | Operational Range | 70-100 Km/h |
| 11 | Maximum Speed | 100 Km/h |
| 12 | Altitude | MSL 11.000 ft |

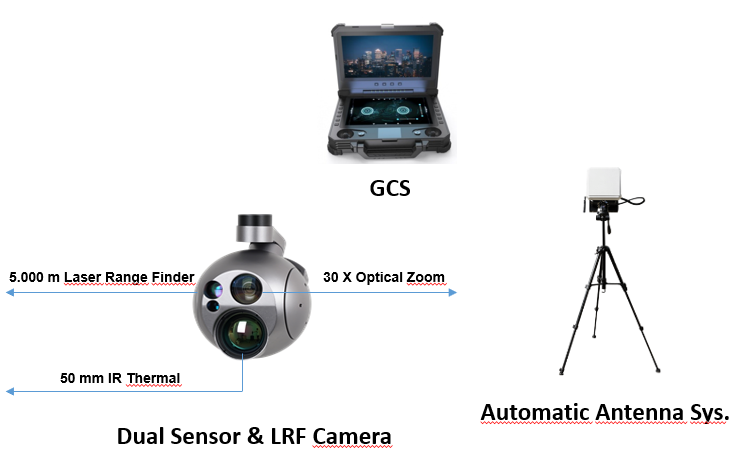

| 13 | Ground Control Station (GCS) & RC | Rugged Single & Dual Screen Windows GCS |
| 14 | Camera | Dual Sensor: 30x Zoom & 5 or 10 Km. LRF, Thermal 640X512 pixel with 50 mm lens |
| 15 | Max. Flight Altitude | 3.000 m MSL |
